A/D/S PS 5.2

[smatty83]

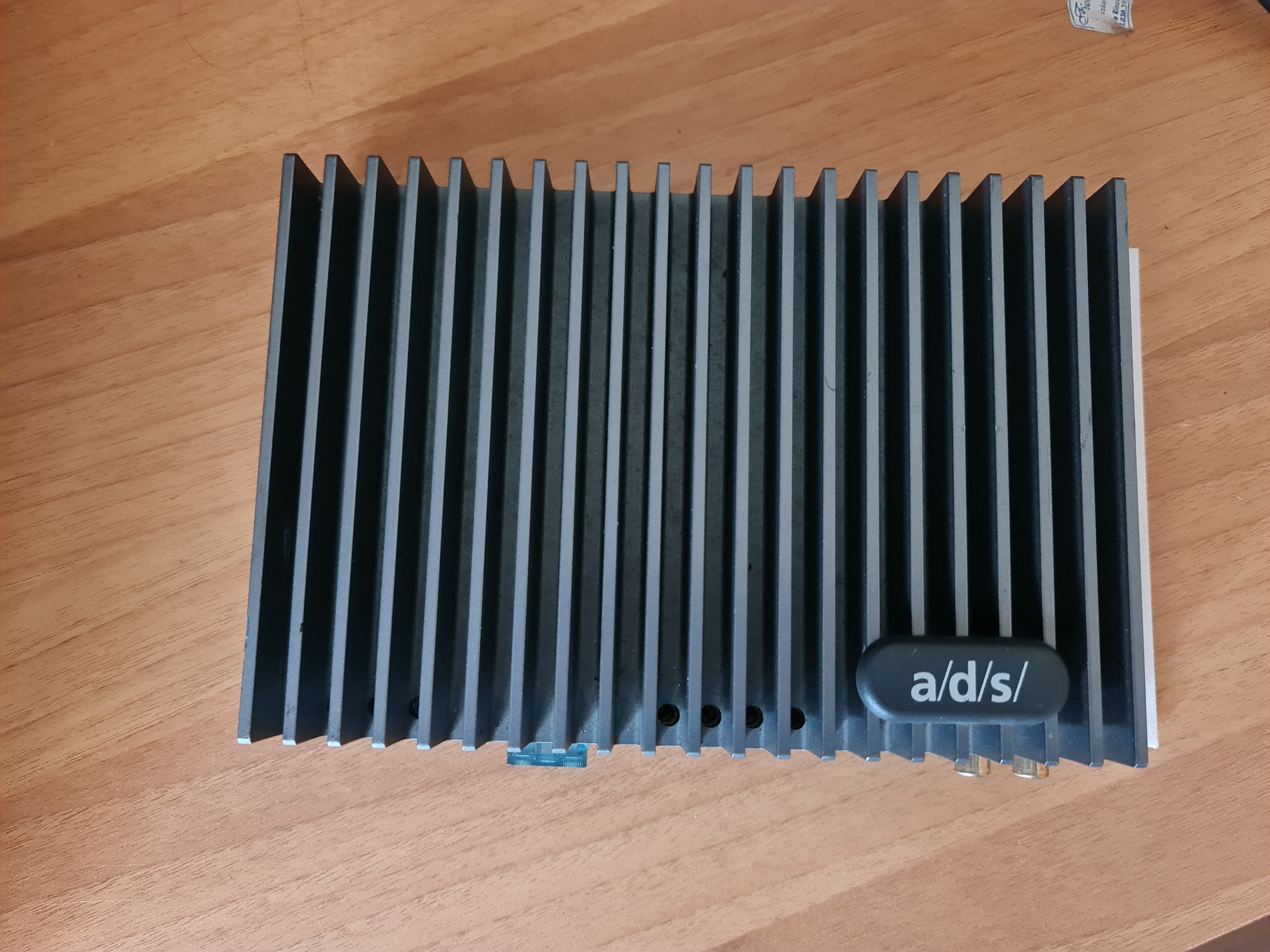

Ecco un altro membro della collezione, il piccolo A/D/S PS 5.2
Specifiche:
Continuous average power output per channel, at 14.4 VDC
power input, with no more than the specified total harmonic distortion:
- Guaranteed performance
Stereo mode, both channels driven, 20Hz to 20kHz: 30 Watts into 4 Ohms, THD=0.05%
40 Watts into 2 Ohms, THD=0.1%
Bridge mode, single channel, 20Hz to20kHz: 80 Watts into 4 Ohms. THD=e0.1%

- Typical performance
Stereo mode, both channels driven, 20Hz to 20kHz: 35 Watts into 4 Ohms, THD=0.4%
45 Watts into 2 Ohms, THD=0.4%
Bridge mode, single channel, 20Hz to 20kHz: 90 Watts into 4 Ohms, THD=0.4%
Stereo mode, both channels driven, 1kHz, 1% THD: 40 Watts into 4 Ohms
50 Watts into 2 Ohms
Bridge mode, single channel, 1kHz, 0.5% THD: 100Watts into4 Ohms

- IHF dynamic headroom 2.5 dB into 4 Ohms
- Damping factor > 100 into 4 Ohms
> 50 into 2 Ohms
- Frequency response +0, -0.5dB, 20Hz to 20kHz
- IHF signal to noise ratio, 1 W into 4 Ohms 93dBA

- Input sensitivity/impedance, for rated output into 4 Ohms 45mV/50k Ohms
- Input level control attenuation range 28dB
- DC power supply voltage 10to 16V
- Remote power on/off current 10mA
DC power supply current:
No signal 0.44A
Maximum output 15A
Powerfuse TypeATO, 15 A
